Heavy copper PCB/thick copper PCB

●Overview of thick copper pcb/heavy copper pcb

Heavy copper PCB,or called thick copper PCB,which have a copper weight greater than 3 oz (105 μm). per square foot. They are designed to carry high current, and typically feature copper tracks and planes that are much thicker than those found on standard PCBs. The thickness of the copper enables the board to handle high current loads, which makes them ideal for use in power electronics, industrial controls, and automotive applications. Heavy copper PCBs are also able to dissipate heat more effectively than standard PCBs, which increases their reliability and lifespan.

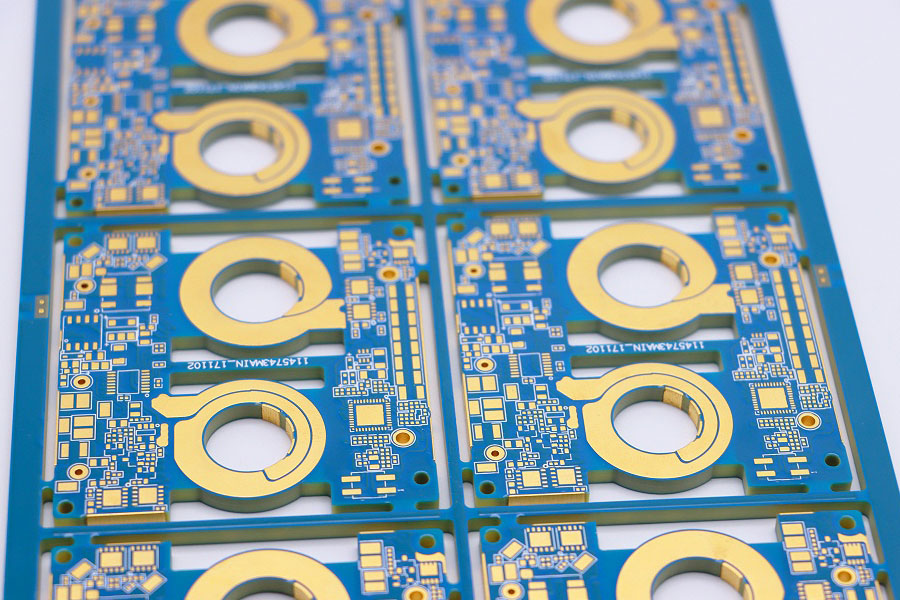

●Specifications of this presented heavy copper PCB

PCB Layers: 6 Layer PCB

PCB thickness: 2.5±0.05mm

PCB Material:Shengyi S1000-2M

Minimum Mechanical hole: 0.2mm

Minimum line width/spacing: 75/75um

Aperture ratio: 8:1

Surface Finished: Immersion gold, thickness: 0.03um
